10 YEARS
of experience in original equipment manufacturing
24 HOUR
Rigorous Burn-in Testing for Maximum Reliability
24/7
Expert Technical Support & Engineering Assistance
97% EFF
Energy-Efficient Circuit Design
Intelligent, Stable & Reliable
Technical Specifications
| System Model | Troxlly TX‑40 Salt Chlorine Generator, 40g/h |
| Electrode Tech | DSA (Dimensionally Stable Anodes) Ru-Ir Coated Titanium |
| Chlorine Output | 40 g/h |
| Max Pool Volume | Up to 50,000 Gal |
| Warranty Plan | 3 Yrs / 10,000 Hrs |
| Self-Cleaning | Automatic Reverse Polarity (4h Cycle) |
| Protection Rating | IPX5 Certified Engineering |
| App Connectivity | WiFi (Smart Life) |
Product Overview

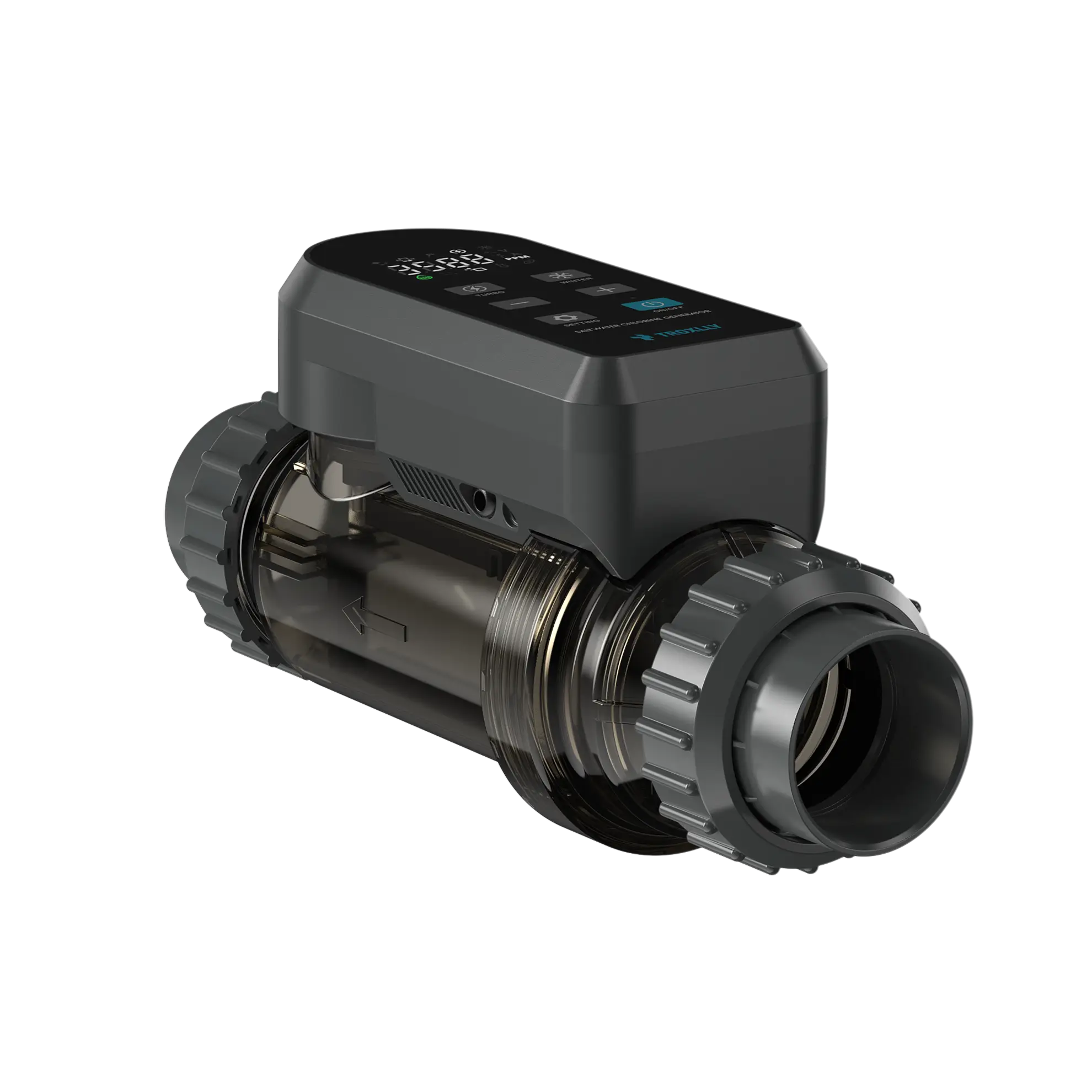

Technical Specifications – TX-40B Salt Chlorinator
| Brand | Troxlly |
| Model | TX-40B |
| Rated Voltage | AC100–240V 50/60Hz |
| Operating Voltage | DC30V |
| Rated Power | 210W |
| Chlorine Output | 40g/h |
| Self-Cleaning | Yes (Reverse Polarity) |
| Wi-Fi Remote Control | Yes (App controlled) |
| Waterproof Rating | IPX4 |
| Insulation Resistance | >20MΩ |
| Electrode Material | Titanium + Ruthenium Oxide |
| Water Flow Protection | Yes |
| Low Salt Alarm | Yes |
| Temperature Monitoring | 10°C–45°C range |
| Memory Function | Yes |
| Mounting | Wall-mounted (Horizontal/Vertical) |
| Recommended Salinity | 3000–4500ppm |
| Pool Volume Supported | 30,000 – 50,000 Gallons |
| Shipping Dimensions | 11.6 x 8.8 x 7.2 in |
| Shipping Weight | 6.6 lb |
Industrial Engineering & Durability
Compact, Robust, and Built to Last.
- Streamlined All-in-One Design: We integrated the controller and cell into a single compact unit, eliminating bulky wiring and saving valuable pad space.
- Effortless In-Line Installation: Features a coaxial water inlet/outlet design for simplified plumbing, cutting installation time in half.
- IPX4 Waterproof Engineering: A fully sealed, industrial-grade chassis ensures reliable operation even in harsh, wet outdoor environments.
- Tool-Free Maintenance: Designed with a movable structure for quick, easy access to electrodes—no tools required.
Premium Core Technology
The Heart of Your Pool System.
- Long-Life Titanium Core: Crafted with premium titanium plates coated in Ruthenium Oxide, delivering outstanding corrosion resistance and extended lifespan.
- Reverse Polarity Self-Cleaning: The system automatically reverses polarity to prevent calcium buildup on plates, keeping performance high and maintenance low.
- Smart Wi-Fi & App Control: Monitor salinity, adjust output, and check status remotely via your smartphone. Pool care has never been this convenient.
6-Layer Intelligent Protection
Safety Without Compromise.
- Real-Time Flow Monitoring: Automatically stops operation if insufficient water flow is detected to prevent overheating.
- Smart Salt & Temp Sensors: Real-time alerts for low salt levels and abnormal temperatures (below 10°C or above 45°C) to protect the cell.
- Electrical Safeguards: Constant monitoring of voltage and current, plus intelligent circuit fault detection, ensures your system runs safely 24/7.
- Power-Off Memory: Your custom settings are automatically saved even after a power outage.
TX Series Selection Guide
| Model | Output | Pool Size (Gal) | Power |
|---|---|---|---|
| TX-15B | 15g/h | Up to 15K | 70W |
| TX-20B | 20g/h | Up to 30K | 110W |
| TX-30B | 30g/h | Up to 45K | 150W |
| TX-50B | 50g/h | Up to 60K | 190W |
Engineering Excellence
Our electrodes utilize industry-leading DSA (Dimensionally Stable Anodes) technology. By applying a specialized Ru-Ir coating to a high-purity titanium substrate, we ensure optimal efficiency and resistance to corrosion.
Designed for fresh installations, the TX series includes standard PVC unions for a clean, watertight setup on any pool plumbing configuration.
