How to Install Your TROXLLY Chlorinator

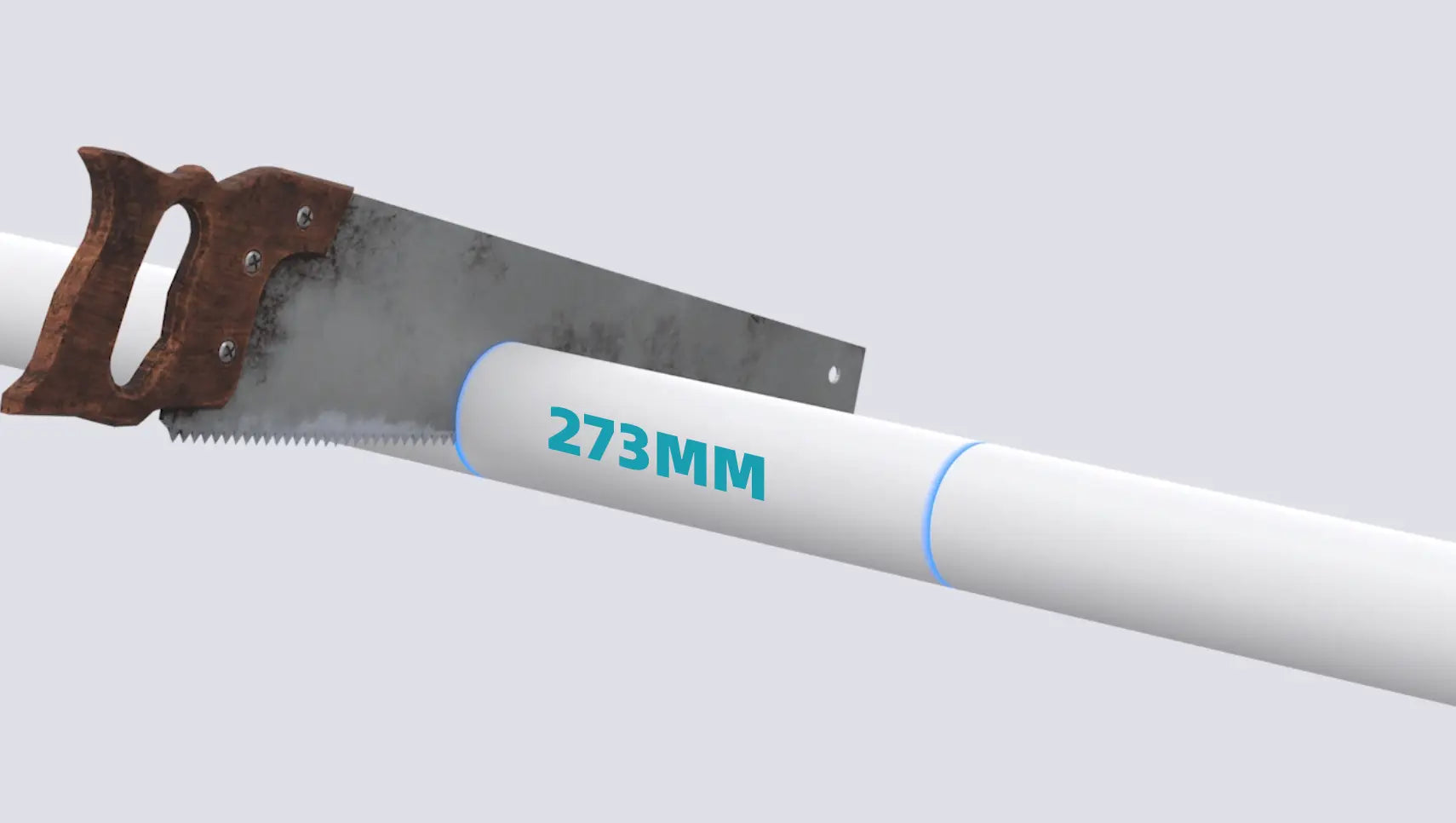

Step 1: Measure and Cut PVC Pipe
Cut the PVC pipe to a length of 273mm to fit the chlorinator.
Ensure the cut is straight and clean to avoid leakage.
We provide both 1.5″ and 2″ adapters—please match to your pipe size.

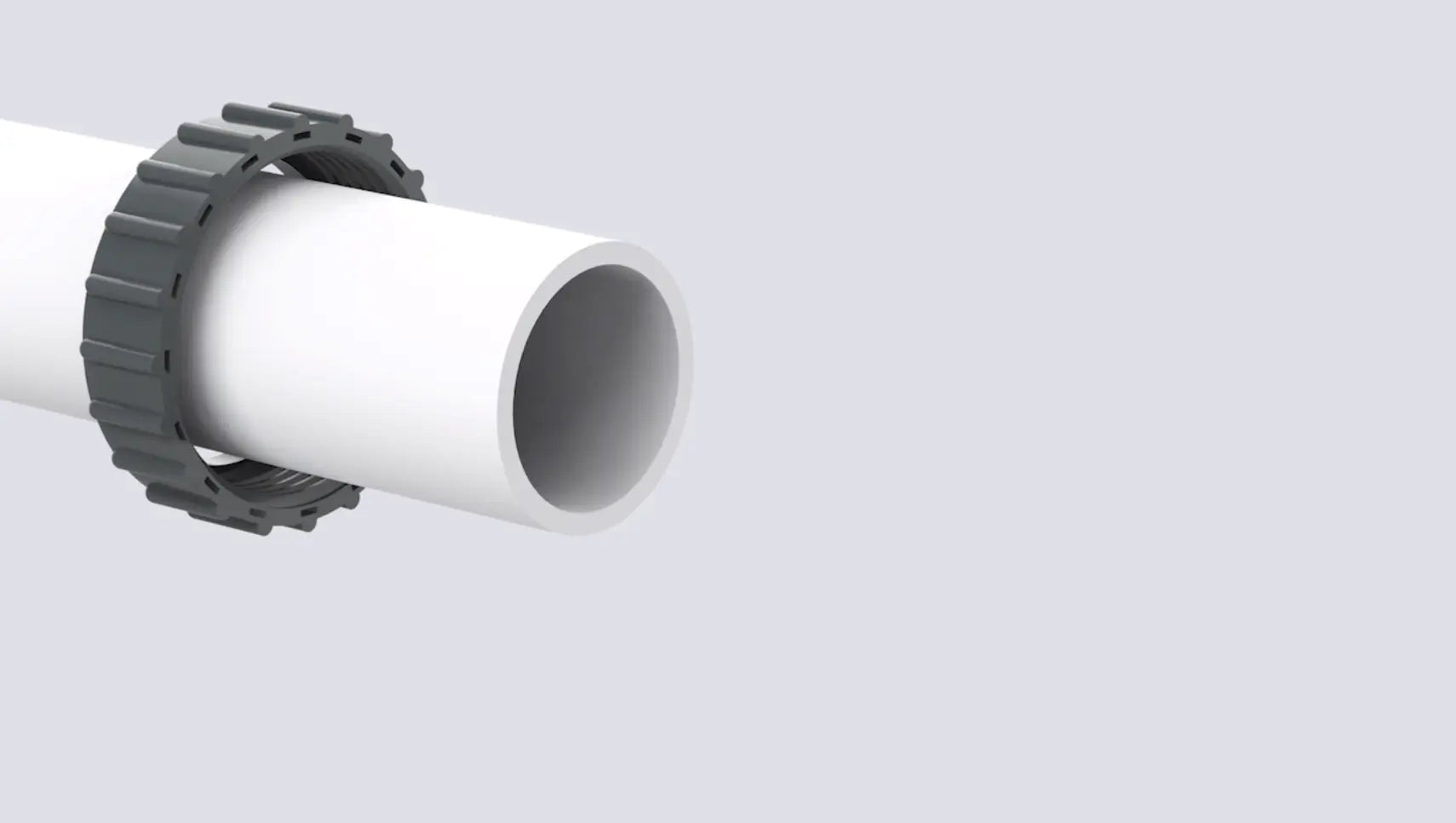

Step 2: Insert Threaded Rings (Nuts)
Slide the threaded nuts onto both ends of the pipe.
These will be used later to lock the unit.

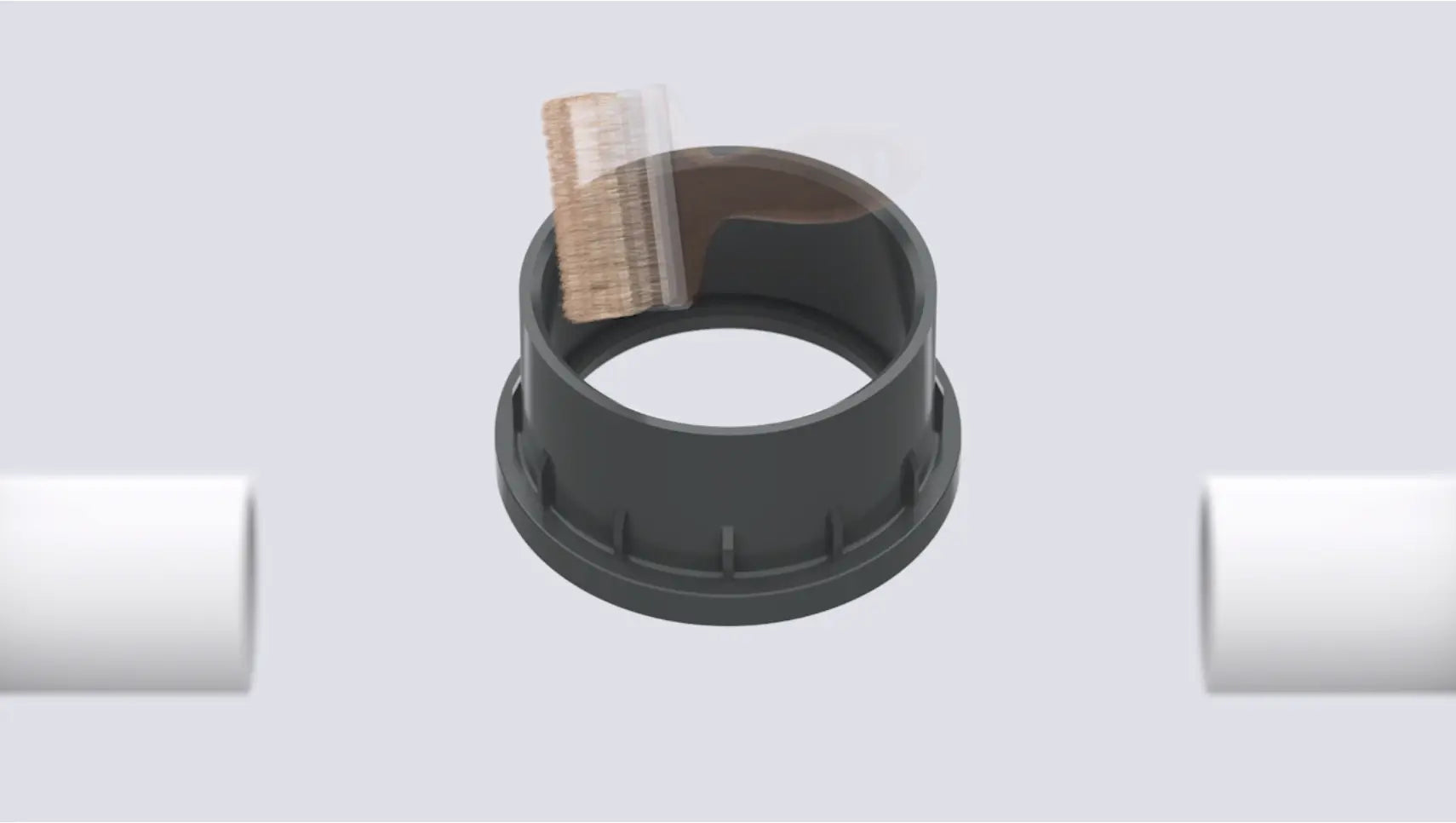

Step 3: Apply Glue and Insert Adapters
Apply PVC adhesive to the pipe ends and insert the adapters.
Let the glue cure before proceeding.

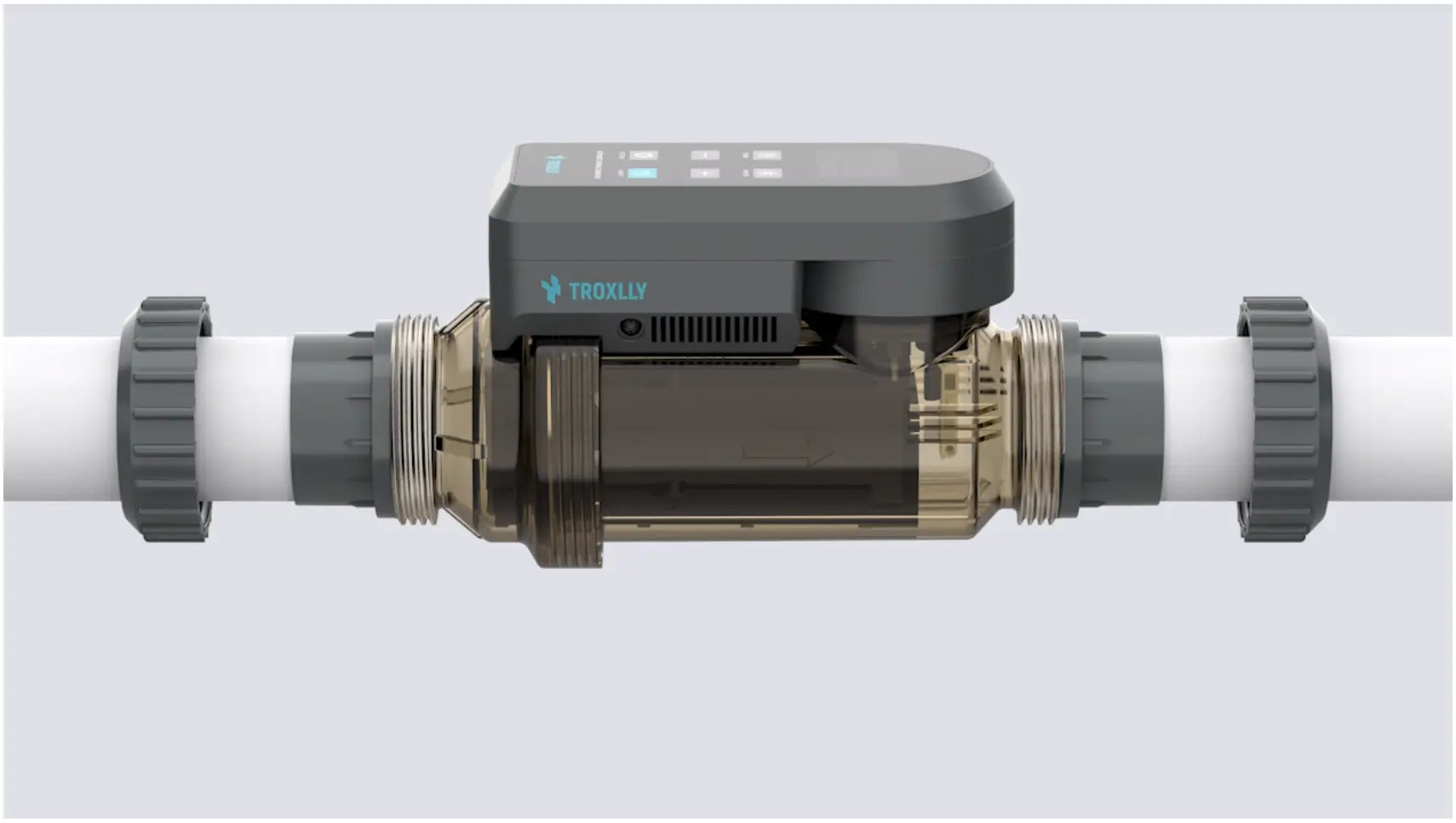

Step 4: Connect the Chlorinator Body
Align both ends of the chlorinator with the adapters.

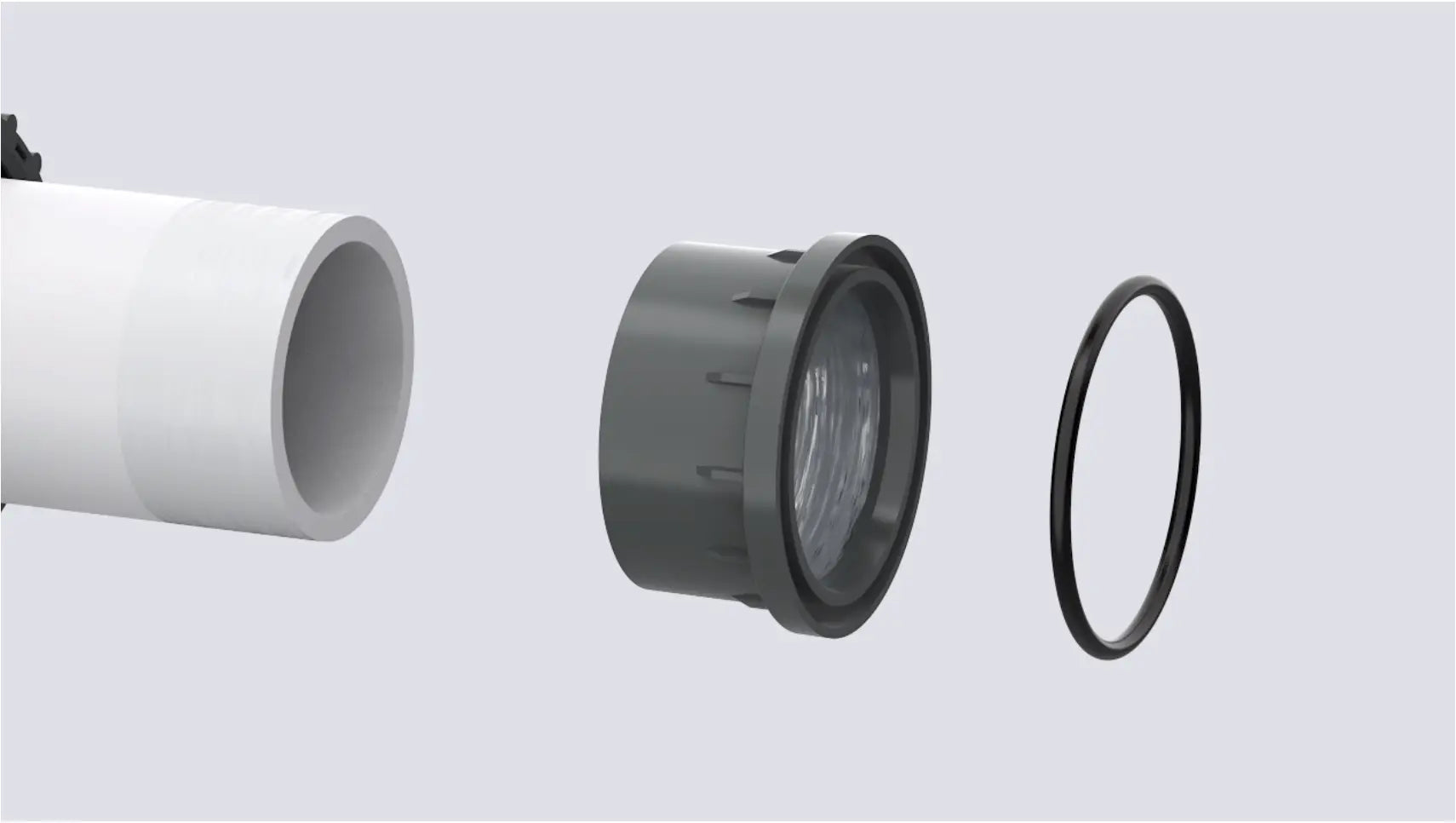

Ensure O-rings are inside to prevent leakage.

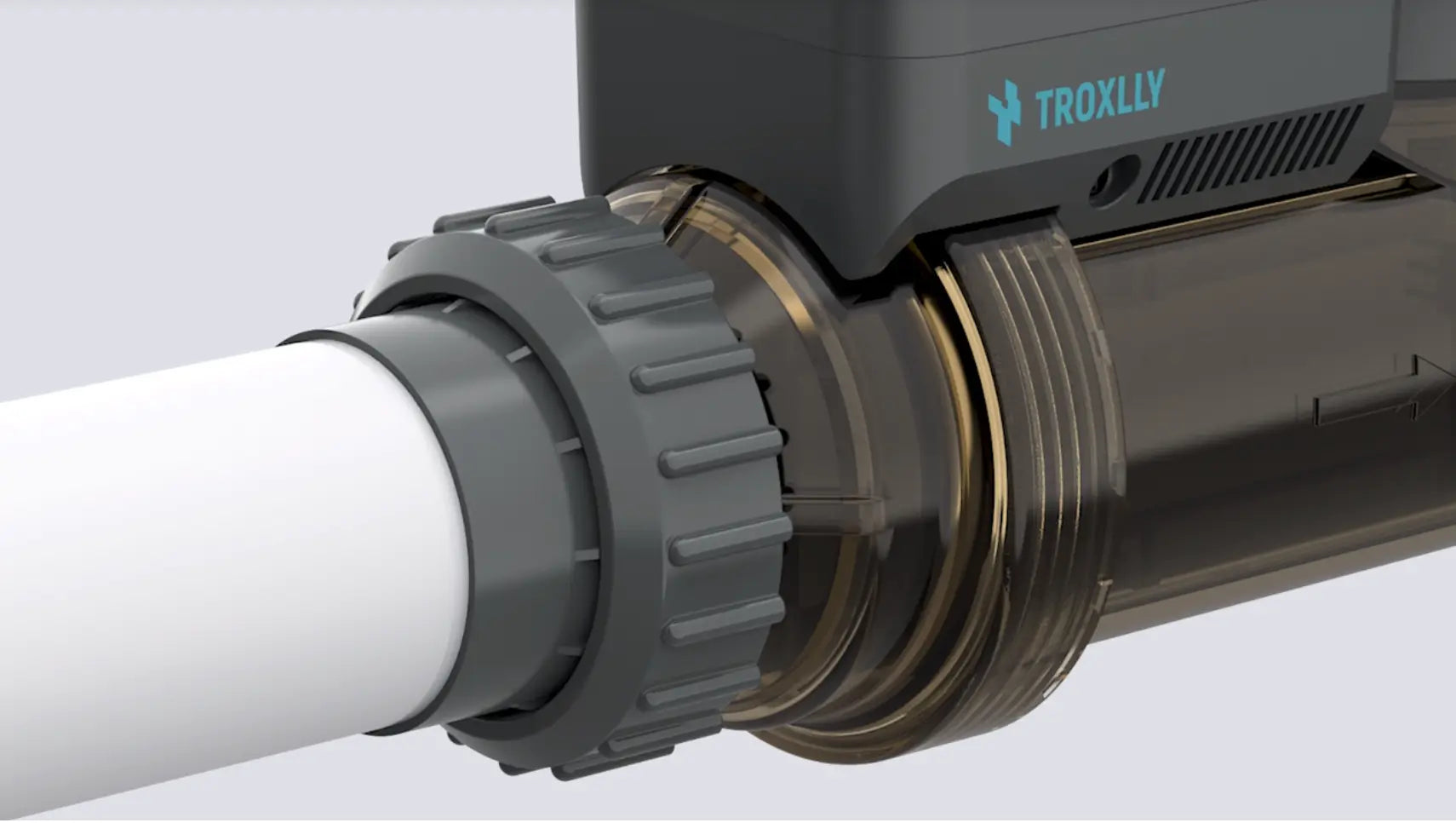

Step 5: Tighten the Nuts
Tighten the nuts on both sides. Hand-tight is usually sufficient.
Tip: If not detected, use “Add Device” to search manually.
Recommended Installation Orientation
Horizontal Installation Recommended
Install shut-off valves on both ends for easy future maintenance.
Vertical Mount (If Needed)
If vertical installation is necessary, make sure water flows upward.
Avoid: Downward Water Flow
Do not install with downward water flow—it can cause sensor malfunction.
TIPS

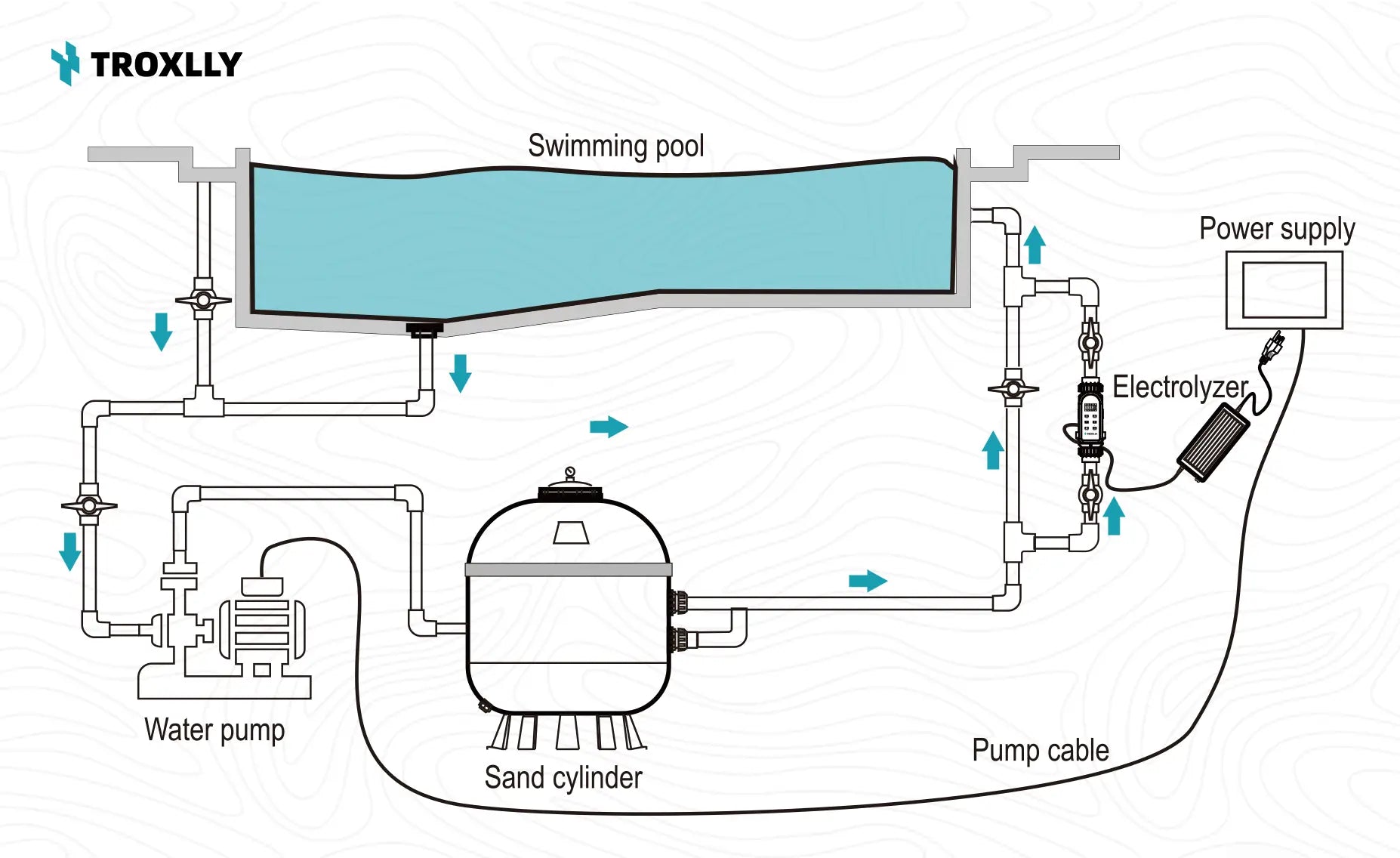

System Schematic Diagram
Refer to this diagram to integrate with your pump, sand filter, and pool piping.
Preparations Before Use
- Make sure salinity is within 3000–4500 ppm.
- Open water valves and confirm proper flow without leaks.
- Start the pump and ensure the flow switch is triggered.
- Connect the power supply and power on the unit.
Outdoor Power Adapter Protection Tips
- Install the power supply in a rain-sheltered area, such as under an eave or inside a recessed wall groove.
- Use waterproof outdoor sockets for added electrical safety.
